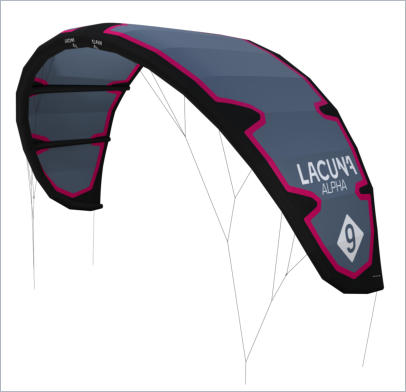

ALPHA KITE

The Alpha is a high-aspect boosting and hangtime machine, flying forward in the window with a predictable arc and smooth pull through loops. It delivers vertical lift with precise kite awareness, while remaining responsive and fun for freeride.

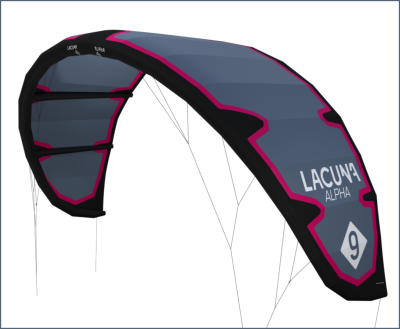

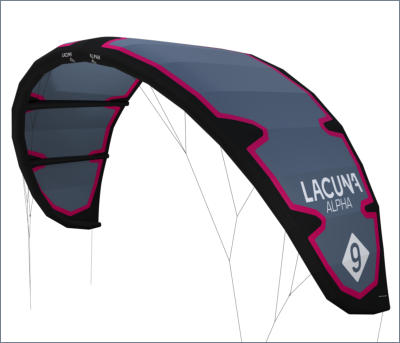

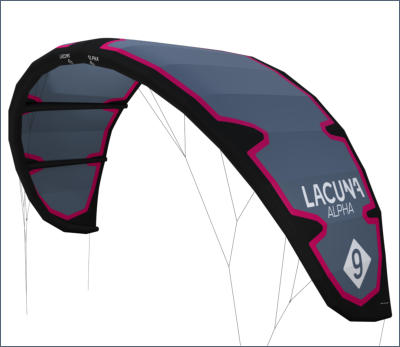

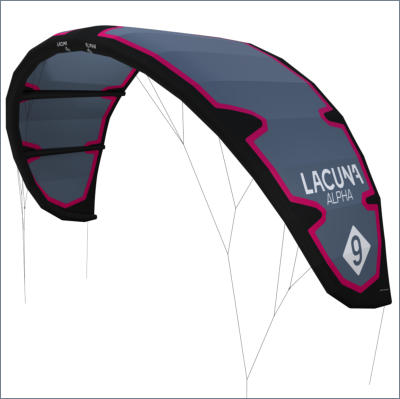

ALPHA v4

Type of Rider The Alpha V4 is for riders who want a boosting kite that is predictable and easy to control. It provides positive steering feedback through the bar, so you always know where it is in the sky and can avoid over-sending during tricks. The kite turns when you give input but stays steady when you don’t. With vertical lift on take-off, it has a more performance- driven feel than the previous version, while also being more playful and responsive. This makes it well suited to riders progressing in both boosting and freeride. Rider Level Intermediate to Advanced Size and Colour Options China Blue Canopy / Rubine Red trim 7m | 8m | 9m | 11m | 13m Kite Performance The Alpha V4 is built to perform across the wind range, staying stable and intuitive even in strong, gusty conditions. Its hybrid 8-point bridle system gives even leading edge support with a direct bar feel, and is tuned for a clean low-V line setup that reduces tangles and improves safety. The V4 introduces a wider, flatter arc and increased projected area, creating more vertical boost and longer hangtime. A refined profile and reduced leading edge diameter allow the kite to fly forward after loops and drive upwind between jumps. It’s a kite designed not just to go big, but to give you the confidence to keep progressing. Kitting Kite comes in a durable, hold it all, roll-top-closure style bag with no zips. The colour coded strap, enables you to keep the kite bundled or can be used to turn the bag into a sling style duffle bag. Also included is a spare part kit containing - A3 sheet size canopy, trim line and reinforcement fabrics, - Bladder and Mark cloth repair patching material, - Zip ties, One Pump Hose and inlet valve o’ring, and - Stickers.
Kite Size (m2)
7m
8m
9m
11m
13m
Bar Size (cm)
46cm
46/51cm
51cm
Line Length (m)
23m
Center Chord (m)
1.50
1.60
1.70
1.88
2.05
Flat Span (m)
5.83
6.23
6.60
7.30
7.95
Flat Aspect Ratio
4.85
4.85
4.85
4.85
4.85
Projected Area (m2)
4.85
5.54
6.24
7.63
9.01
Projected Aspect Ratio
2.79
2.78
2.78
2.76
2.76

ALPHA V4 SPECIFICATIONS

ALPHA MODEL COMPARISON

Model
V1
V2
V3
V4
Available Sizes (m2)
7,8,9,10,12,14
7, 8, 9, 10, 12
7, 9, 12
7, 8, 9, 11, 13
Colourway/s

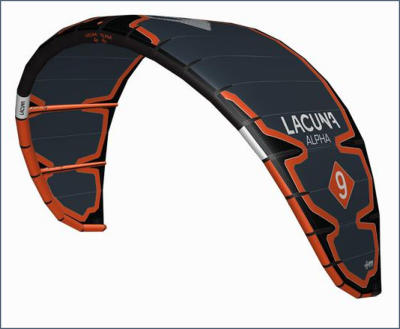

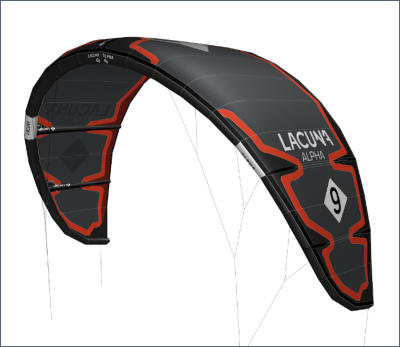

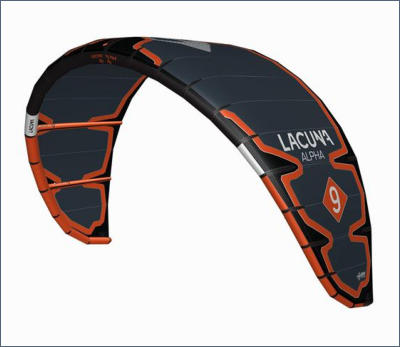

Petrol Blue Canopy / Green trim & Charcoal Canopy / Orange trim
Charcoal Canopy / Orange trim

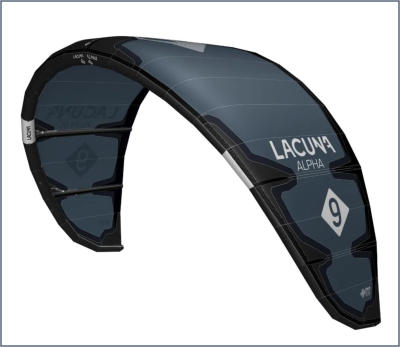

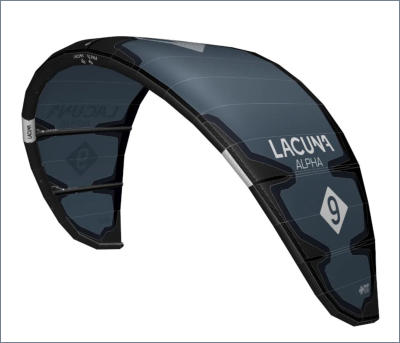

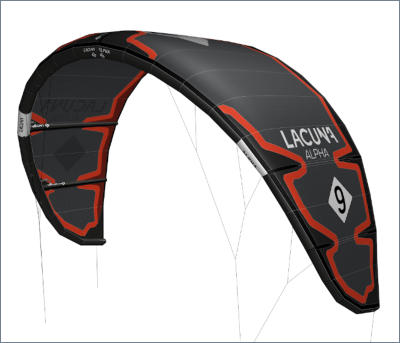

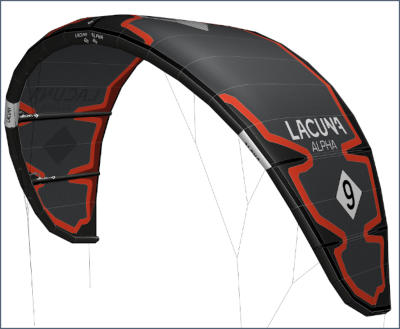

Storm Grey Canopy / Midnight Blue trim
China Blue Canopy / Rubine Red trim
Bridle Style
6 Point with Hang Point Pulley
6 Point with Hang Point Pulley
6 Point with Hang Point Pulley
8 Point hybrid with WingTip Slider
Inflation Valve
Max Flow
Max Flow
Mini Boston Direct Connect
Mini Boston Direct Connect
Materials
Teijin™ T9600 Canopy IYU 400161 Dacron
Teijin™ T9669 Canopy DP175 Dacron
Teijin™ T9940 Canopy DP175 Dacron
JR028 65gsm Canopy JR031 75gsm Trim JR033 130gsm Reinforcement JR032 160gsm Dacron

Intuit Mailchimp

JOIN THE LACUNA

COMMUNITY

FOLLOW US ON

© Copyright 2021 - 2025 | All Rights Reserved | Lacuna Kites
More Tech Specs and Comparison to Previous Model More Tech Specs and Comparison to Previous Model

LACUNA ALPHA KITE RELATED RESOURCES

Product specifications to assist with maintenance and repair: Alpha V1 Bridle Specs Alpha v2 Bridle Specs Alpha V3 Bridle Specs Most major repair centers and after market parts suppliers can assist with making up new bridles or bladders - you can find contact details on our Industry Partners page.
