OMEGA KITE

The Omega is a smooth and predictable all-round freeride kite that responds to your input and you know where it is at all times. This combined with excellent hang time in lofty, floaty jumps makes for pain free progression from water-starts to megaloops and everything in between.

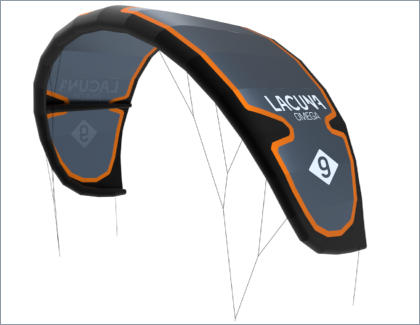

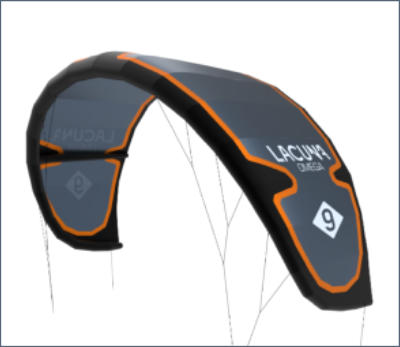

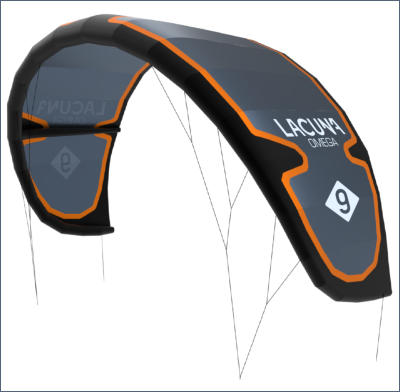

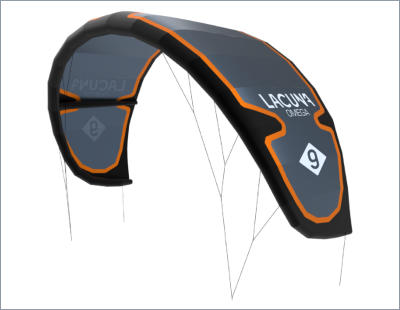

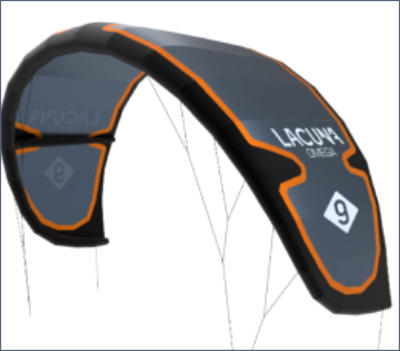

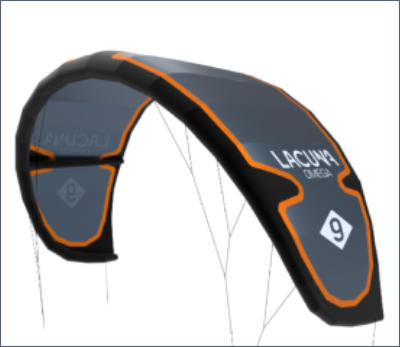

OMEGA v4

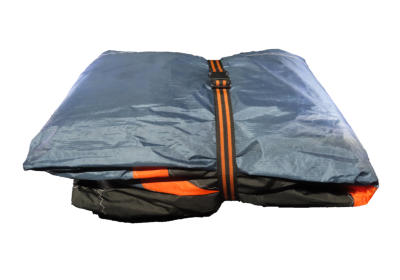

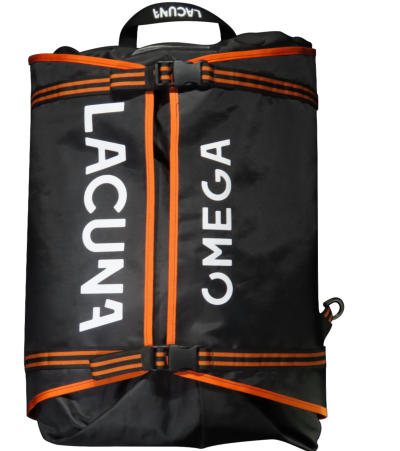

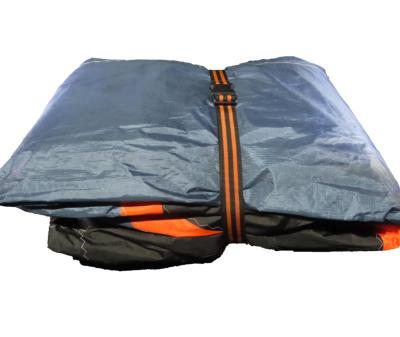

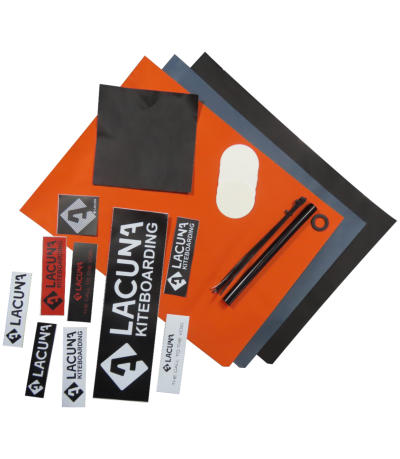

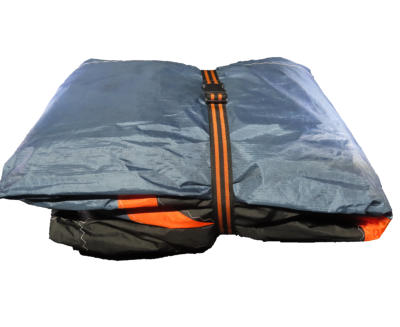

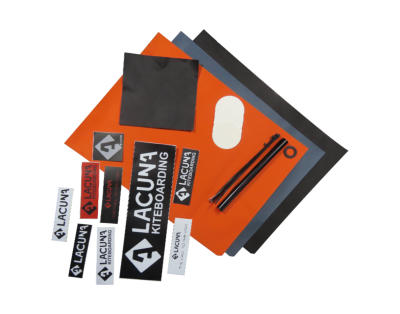

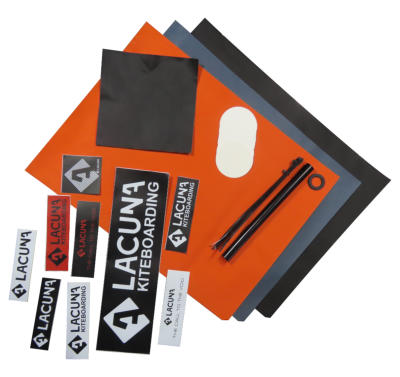

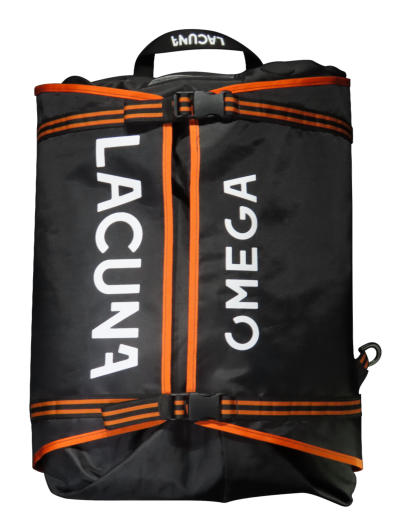

Type of Rider For the rider who wants a constant steady pull and no surprises, the Omega is a kite that is easy to get up and ride upwind, catch a wave, fly on a foil or boost to new heights. With it’s predictable handling and constant stable bar pressure that always lets you know where the kite is the Omega V4 is the ultimate kite for riders who want pain free progression. Rider Level Beginner to Advanced Colour and Size Options China Blue Canopy / Orange trim 6, 7, 8, 9, 10, 12 & 14sqm Kite Performance This new version of the Omega has seen updates to the shape, materials and bridle set up, while improving on the features the Omega is known for - Predictable handling, - Easy turning, - Sheet and go power delivery, and - Depower on demand. The wider wingtips, smaller centre cord and pulley-less bridle system all contribute to the changes, producing a kite that is more predictable throughout it’s wind range, instilling confidence in riders of all levels. Kitting Kite comes in a durable, hold it all, roll-top-closure style bag with no zips. The colour coded strap, enables you to keep the kite bundled or can be used to turn the bag into a sling style duffle bag. Also included is a spare part kit containing - A3 sheet size canopy, trim line and reinforcement fabrics, - Bladder and Mark cloth repair patching material, - Zip ties, One Pump Hose and inlet valve o’ring, and - Stickers.
More Tech Specs and Comparison to Previous Models More Tech Specs and Comparison to Previous Models
Kite Size (m2)
6m
7m
8m
9m
10m
12m
14m
Bar Size (cm)
46cm
46/51cm
51cm
Line Length (m)
23m
Center Chord (m)
1.34
1.45
1.56
1.65
1.75
1.91
2.07
Flat Span (m)
5.15
5.57
5.96
6.33
6.68
7.29
7.88
Flat Aspect Ratio
4.5
4.5
4.5
4.5
4.5
4.5
4.5
Projected Area (m2)
3.73
4.37
5.01
5.65
6.29
7.49
8.77
Projected Aspect Ratio
2.45
2.45
2.45
2.45
2.45
2.45
2.45

OMEGA V4 SPECIFICATIONS

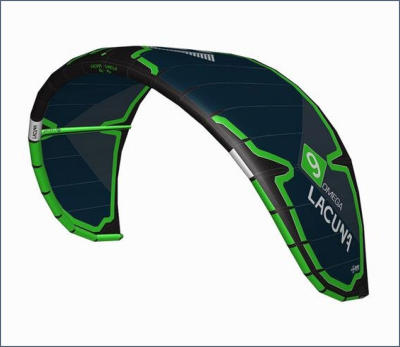

OMEGA MODEL SPECIFICATION COMPARISON

Model
V1
V2
V3
V4
A v a i l a b l e Sizes (m2)
4,5,6,7,8,9,10,12,14
5, 6, 7, 8, 9, 10, 12, 14
5, 6, 7, 8, 9, 10, 12, 14
6, 7, 8, 9, 10, 12, 14
Colourway/s
Petrol Blue Canopy / Green trim & Cyan Blue Canopy / Orange trim

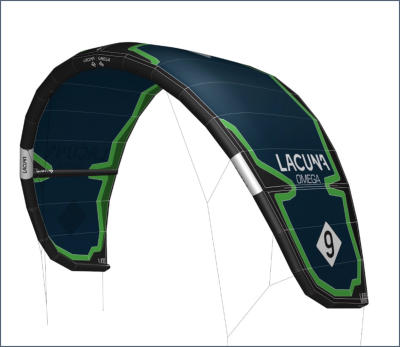

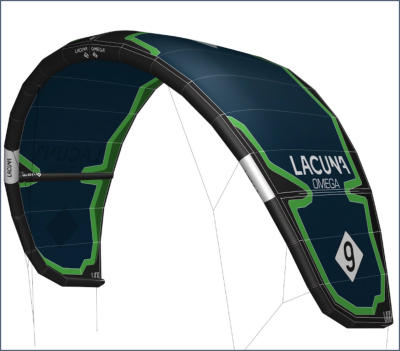

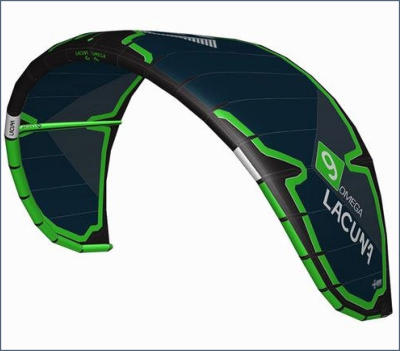

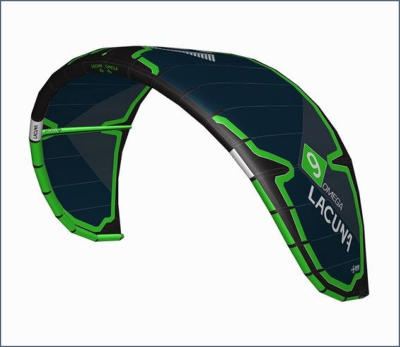

Petrol Blue Canopy / Green trim

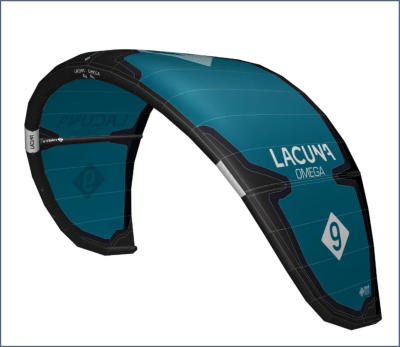

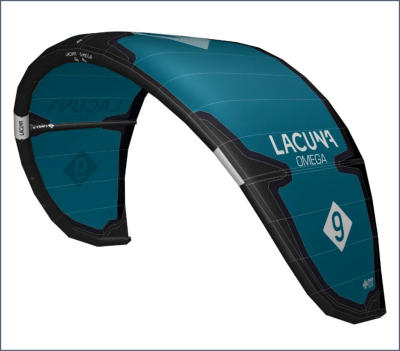

Aqua Canopy / Midnight Blue trim
China Blue Canopy / Orange trim
Bridle Style
6 Point with Hang Point Pulley
6 Point with Hang Point Pulley
6 Point with Hang Point Pulley
Fixed 6 Point with No Pulleys
I n f l a t i o n Valve
Max Flow
Max Flow
Mini Boston Direct Connect
Mini Boston Direct Connect
Materials
Teijin™ T9670 Canopy IYU 400161 Dacron
Teijin™ T9669 Canopy DP175 Dacron
Teijin™ T9940 Canopy DP175 Dacron
JR028 65gsm Canopy JR031 75gsm Trim JR033 130gsm Reinforcement JR032 160gsm Dacron
KITE SIZE (m) 6 7 8 9 10 12 14 FOR A COMPETENT 75KG RIDER ON A TWINTIP 5 10152025303540 WIND RANGE - OMEGA WIND SPEED (Knots) Allround Freeride Fun 22 - 38 Knots 17 - 34 Knots 16 - 32 Knots 14 - 28 Knots 12 - 25 Knots 9 - 22 Knots 8 - 18 Knots RANGE (Knots) 16 17 16 14 13 13 10

LACUNA OMEGA KITE RELATED RESOURCES

Product specifications to assist with maintenance and repair: Omega V1 Bridle Specs Omega v2 Bridle Specs Omega V3 Bridle Specs Omega V4 Bridle Specs Most major repair centers and after market parts suppliers can assist with making up new bridles or bladders - you can find contact details on our Industry Partners page.
